Description
The Doran 2200CW Series Scale is an advanced high-performance checkweigher that combines a 2200CW advanced weighing indicator with a rugged Doran scale base and column. The system features stainless steel construction and washdown protection — with components that are Built in the USA.
Three and five band checkweighing guides the operator to accurately hit product targets quickly. Manufacturers can realize ingredient savings, improve quality control, achieve greater accountability, and support traceability goals.
This scale is available in capacities from 2 to 200 lbs, with base sizes from 10″ x 10″ to 15″ x 15″ and includes a 14″ column which ships attached.
We will match any competitor’s price- Call us at 800-722-5315 if you see a lower price online.

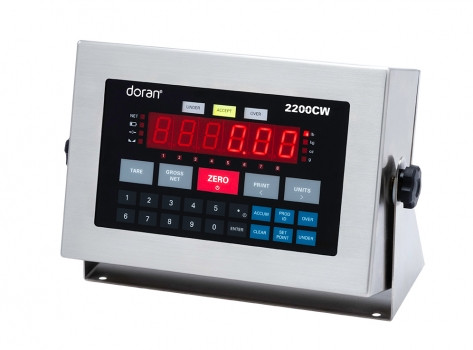

Indicator
- Built in America
- 304 stainless steel construction
- IP69K washdown protection
- 1” tall 6 digit LED display
- Tare, Gross/Net, Zero, Print, Units, Accum, Clear Prod Id, Set Point, Over, Under, Enter, Decimal Point, and Numeric Keypad 0-9
- 800 Product Memory includes checkweigh limits, unit of measure, accumulator and counter values, tare, two data fields, checkweigh operation, and output configuration
Scale Platform
- 304 stainless steel construction
- “Quad-Spring” base design provides 1000% overload protection in scale bases 15″ x 15″ and smaller
- Available in sizes from 10″ x 10″ to 15″ x 15″
Two Year Manufacturer Warranty
Power Input: 100-240VAC 50/60Hz
Two Bi-directional RS-232 ports
NTEP Certified
| Model | Capacity | Platform Size | Price |
| 2202CW-C14 | 2 x 0.0005 lbs / 0.9 x 0.2 g / 32 x 0.01 oz |
10″ x 10″ | $1566.00 |
| 2205CW-C14 | 5 x 0.001 lbs / 2.3 kg x 0.5 g / 80 x 0.02 oz | 10″ x 10″ | $1566.00 |
| 2210CW-C14 | 10 x 0.002 lbs / 4.5 kg x 1 g / 160 x 0.05 oz |
10″ x 10″ | $1566.00 |
| 2225CW-C14 | 25 x 0.005 lbs / 11.3 kg x 2 g / 400 x 0.1 oz |
10″ x 10″ | $1566.00 |
| 2250CW-C14 | 50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz | 10″ x 10″ | $1566.00 |
| 2250CW/12-C14 | 50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz | 12″ x 12″ | $1669.50 |
| 22100CW/12-C14 | 100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz | 12″ x 12″ | $1669.50 |
| 2250CW/15-C14 |
50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz | 15″ x 15″ |
$1890.00 |
| 22100CW/15-C14 |
100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz | 15″ x 15″ |
$1890.00 |
| 22200CW/15-C14 | 200 x 0.05 lbs / 91 kg x 20 g / 3200 x 1 oz | 15″ x 15″ | $1890.00 |
