Description
The Doran 4300 Series Checkweigher Scale is simple to use with minimal operator training. Set the scale’s Over/Under tolerances from the front panel using the Up/Down arrow buttons. Perform quality control tasks with the three zone operation or switch to five zone for more precise process control. Use one of the Ethernet options to collect data across a network.
This scale is available in capacities from 2 to 200 lbs, with base sizes from 10″ x 10″ to 15″ x 15″ and includes a 14″ column which ships attached.
We will match any competitor’s price- Call us at 800-722-5315 if you see a lower price online.

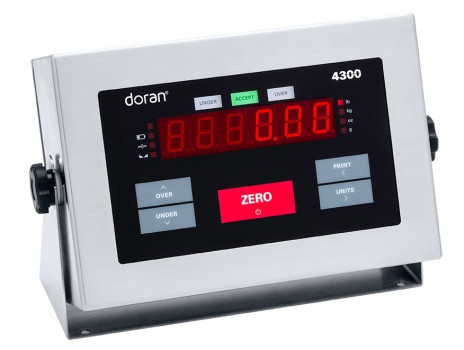

Indicator
- Built in America
- 304 stainless steel construction
- IP69K washdown protection
- Bright red 0.8” tall 6 digit LED display
- Heavy duty touch panel with ZERO, OVER, UNDER, UNITS, and PRINT controls
- Units of measure: lb, kg, oz, g, or lb:oz
- Legal for trade in US and Canada
Scale Platform
- 304 stainless steel construction
- “Quad-Spring” base design provides 1000% overload protection in scale bases 15″ x 15″ and smaller
- Available in sizes from 10″ x 10″ to 15″ x 15″
Two Year Manufacturer Warranty
Power Input: 100-240VAC 50/60Hz
NTEP Certified
| Model | Capacity | Platform Size | Price |
| 4302-C14 | 2 x 0.0005 lbs / 0.9 x 0.2 g / 32 x 0.01 oz |
10″ x 10″ | $1485.00 |
| 4305-C14 | 5 x 0.001 lbs / 2.3 kg x 0.5 g / 80 x 0.02 oz | 10″ x 10″ | $1485.00 |
| 4310-C14 | 10 x 0.002 lbs / 4.5 kg x 1 g / 160 x 0.05 oz |
10″ x 10″ | $1485.00 |
| 4325-C14 | 25 x 0.005 lbs / 11.3 kg x 2 g / 400 x 0.1 oz |
10″ x 10″ | $1485.00 |
| 4350-C14 | 50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz | 10″ x 10″ | $1485.00 |
| 4350/12-C14 | 50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz | 12″ x 12″ | $1588.50 |
| 43100/12-C14 | 100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz | 12″ x 12″ | $1588.50 |
| 4350/15-C14 |
50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz | 15″ x 15″ |
$1809.00 |
| 43100/15-C14 |
100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz | 15″ x 15″ |
$1809.00 |
| 43200/15-C14 | 200 x 0.05 lbs / 91 kg x 20 g / 3200 x 1 oz | 15″ x 15″ | $1809.00 |
