Description
The Doran 4300 Series Checkweigher Scale is simple to use with minimal operator training. Set the scale’s Over/Under tolerances from the front panel using the Up/Down arrow buttons. Perform quality control tasks with the three zone operation or switch to five zone for more precise process control. Use one of the Ethernet options to collect data across a network.
This scale is available in capacities from 50 to 1000 lbs, with base sizes from 15″ x 15″ to 24″ x 24″ and includes a 20″ column which ships separately.
We will match any competitor’s price- Call us at 800-722-5315 if you see a lower price online.

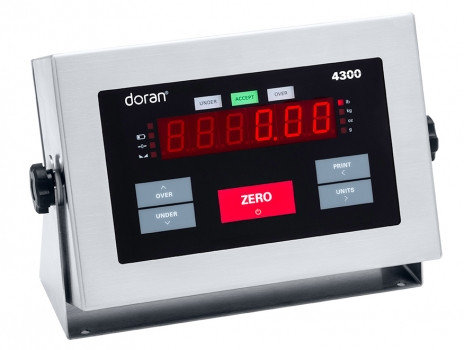

Indicator
- Built in America
- 304 stainless steel construction
- IP69K washdown protection
- Bright red 0.8” tall 6 digit LED display
- Heavy duty touch panel with ZERO, OVER, UNDER, UNITS, and PRINT controls
- Units of measure: lb, kg, oz, g, or lb:oz
- Legal for trade in US and Canada
Scale Platform
- 304 stainless steel construction
- Six-point overload protection in bases 18″ x 18″ and larger provides 300% overload protection
- Available in sizes from 15″ x 15″ to 24″ x 24″
- Available in capacities from 50 lbs to 1000 lbs
Two Year Manufacturer Warranty
Power Input: 100-240VAC 50/60Hz
NTEP Certified
| Model | Capacity | Platform Size | Price |
| 4350/15-C20 | 50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz |
15″ x 15″ | $1872.00 |
| 43100/15-C20 | 100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz | 15″ x 15″ | $1872.00 |
| 43200/15-C20 | 200 x 0.05 lbs / 91 kg x 20 g / 3200 x 1 oz |
15″ x 15″ | $1872.00 |
| 43100/18S-C20 |
100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz |
18″ x 18″ | $2119.50 |
| 43250/18S-C20 | 250 x 0.05 lbs / 113 kg x 20 g / 4000 x 1 oz | 18″ x 18″ | $2119.50 |
| 43500/18S-C20 | 500 x 0.1 lbs / 227 kg x 50 g / 8000 x 2 oz | 18″ x 18″ | $2119.50 |
| 43250/1824-C20 |
250 x 0.05 lbs / 113 kg x 20 g / 4000 x 1 oz | 18″ x 24″ | $2299.50 |
| 43500/1824-C20 | 500 x 0.1 lbs / 227 kg x 50 g / 8000 x 2 oz | 18″ x 24″ |
$2299.50 |
| 43250/2424-C20 | 250 x 0.05 lbs / 113 kg x 20 g / 4000 x 1 oz | 24″ x 24″ |
$2551.50 |
| 43500/2424-C20 | 500 x 0.1 lbs / 227 kg x 50 g / 8000 x 2 oz | 24″ x 24″ | $2551.50 |
| 431000/2424-C20 | 1000 x 0.2 lbs / 454 kg x 100 g / 16000 x 5 oz | 24″ x 24″ | $2551.50 |
