Description

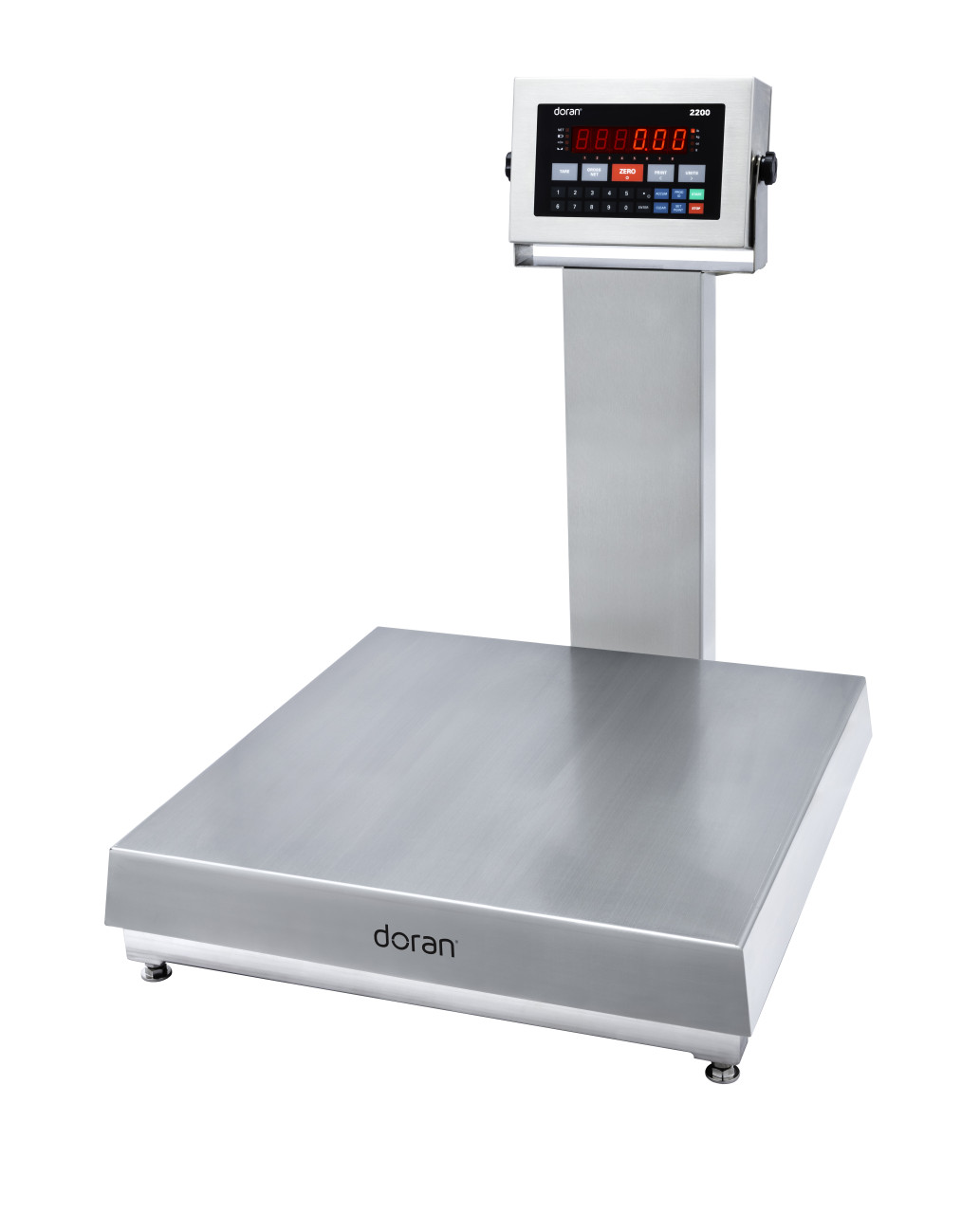

The 2200 SS Series Bench Scale is a complete high-performance weighing system that combines a 2200 SS advanced weighing indicator with a rugged Doran scale base. The system features stainless steel construction and washdown protection — with components that are Built in the USA.
Simply enter the desired value with the full keypad, press one of the clearly labeled function keys, and the data is entered. Manufacturers can realize ingredient savings, improve quality control, achieve greater accountability, and support traceability goals.
This scale is available in capacities from 50 to 1000 lbs, with base sizes from 15″ x 15″ to 24″ x 24″ and includes a 20″ column which ships separately.
We will match any competitor’s price- Call us at 800-722-5315 if you see a lower price online.

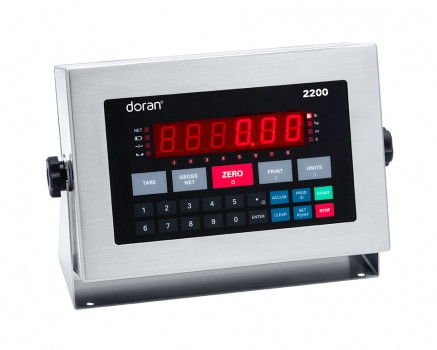

Indicator
- 304 stainless steel construction
- IP69K washdown protection
- Large 0.8” bright LED display
- Tare, Gross/Net, Zero, Print, Units, Accum, Id, Clear, Enter, Set Point, Decimal Point, and Numeric Keypad 0-9
- 800 Product ID’s, containing setpoint values, batch program, accumulator and counter values, tare, two data fields, setpoint and output configurations
- Responsive full numeric keypad that is easy to operate, even when wearing gloves
Scale Platform
- 304 stainless steel construction
- Six-point overload protection in bases 18″ x 18″ and larger provides 300% overload protection
- Available in sizes from 15″ x 15″ to 24″ x 24″
- Available in capacities from 50 lbs to 1000 lbs
Two Year Manufacturer Warranty
Power Input: 100-240VAC 50/60Hz
Two Bi-directional RS-232 ports
NTEP Certified
| Model | Capacity | Platform Size | Price |
| 22050/15-C20 | 50 x 0.01 lbs / 22.7 kg x 5 g / 800 x 0.2 oz |
15″ x 15″ | $1881.00 |
| 22100/15-C20 | 100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz | 15″ x 15″ | $1881.00 |
| 22200/15-C20 | 200 x 0.05 lbs / 91 kg x 20 g / 3200 x 1 oz |
15″ x 15″ | $1881.00 |
| 22100/18S-C20 |
100 x 0.02 lbs / 45 kg x 10 g / 1600 x 0.5 oz |
18″ x 18″ | $2128.50 |
| 22250/18S-C20 | 250 x 0.05 lbs / 113 kg x 20 g / 4000 x 1 oz | 18″ x 18″ | $2128.50 |
| 22500/18S-C20 | 500 x 0.1 lbs / 227 kg x 50 g / 8000 x 2 oz | 18″ x 18″ | $2128.50 |
| 22250/1824-C20 |
250 x 0.05 lbs / 113 kg x 20 g / 4000 x 1 oz | 18″ x 24″ | $2308.50 |
| 22500/1824-C20 | 500 x 0.1 lbs / 227 kg x 50 g / 8000 x 2 oz | 18″ x 24″ |
$2308.50 |
| 22250/2424-C20 | 250 x 0.05 lbs / 113 kg x 20 g / 4000 x 1 oz | 24″ x 24″ |
$2560.50 |
| 22500/2424-C20 | 500 x 0.1 lbs / 227 kg x 50 g / 8000 x 2 oz | 24″ x 24″ | $2560.50 |
| 221000/2424-C20 | 1000 x 0.2 lbs / 454 kg x 100 g / 16000 x 5 oz | 24″ x 24″ | $2560.50 |
